Filter press

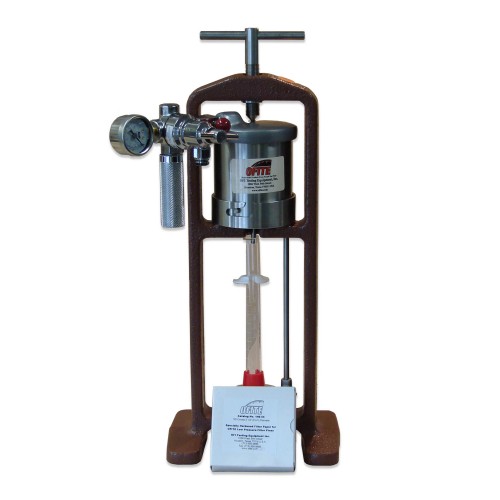

The OFITE Low Pressure Filter Press provides a quick, easy way to evaluate the filtration properties of a drilling fluid.  This instrument consists of a pressure cell, frame, pressure source, filter medium, and a graduated cylinder.  It conforms to API specifications, and is suitable for both field and lab use.

Features

• Stainless steel test cell
• Built-in pressure regulator
• Suitable for field and lab use
• Conforms to API specifications

Specifications

• Working Pressure: 100 PSI (689.5 kPa) - CO2 Bulbs sold separately
• Working Temperature: Ambient
• Filtration Area 7.1 ± 0.1 in² (45.8 ± 0.6 cm2)
• Working Volume: 400 mL
• Shipping Size: 22” × 14” × 10” (56 × 36 × 25 cm)
• Approximate Shipping Weight: 25 lb (11.34 kg)
